Wilwood Narrow Dynapro-P Radial Rear Brake Kit for Porsche 911/912 Models (1969-83)

Narrow Dynapro-P Radial Rear Brake Kit

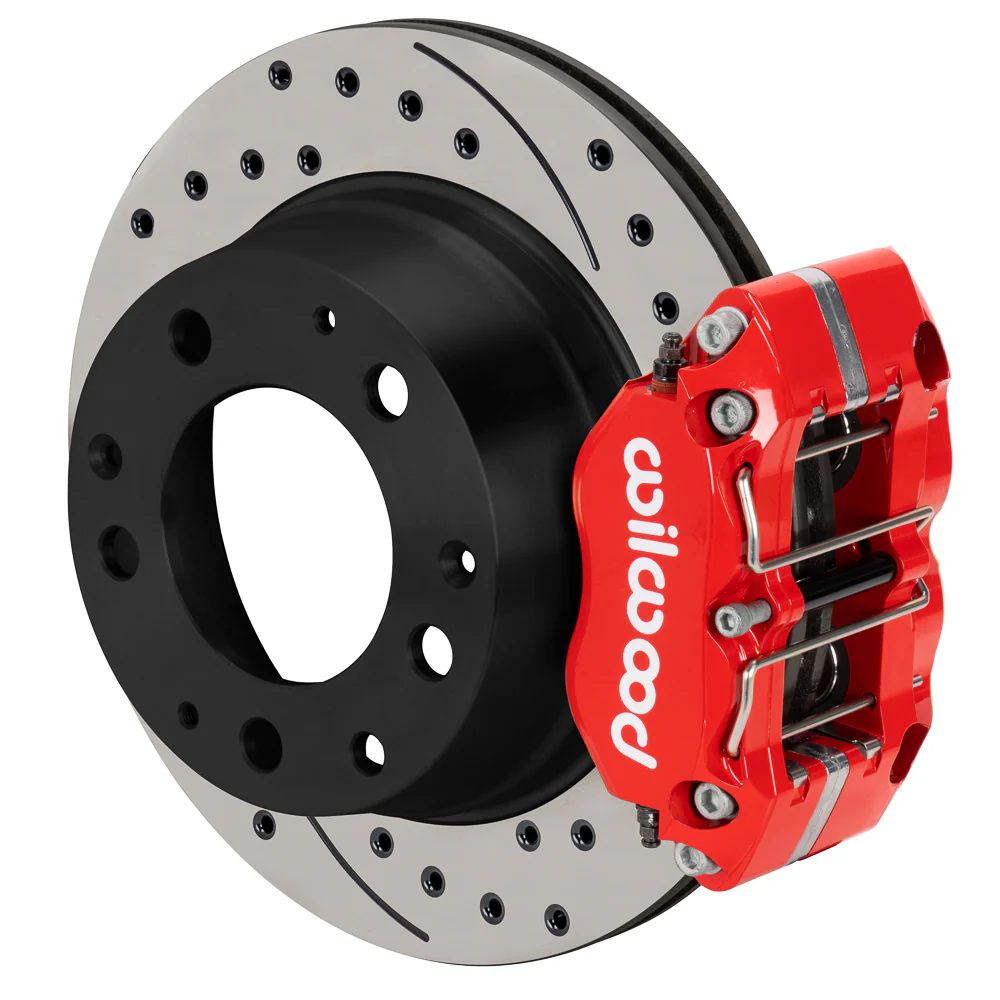

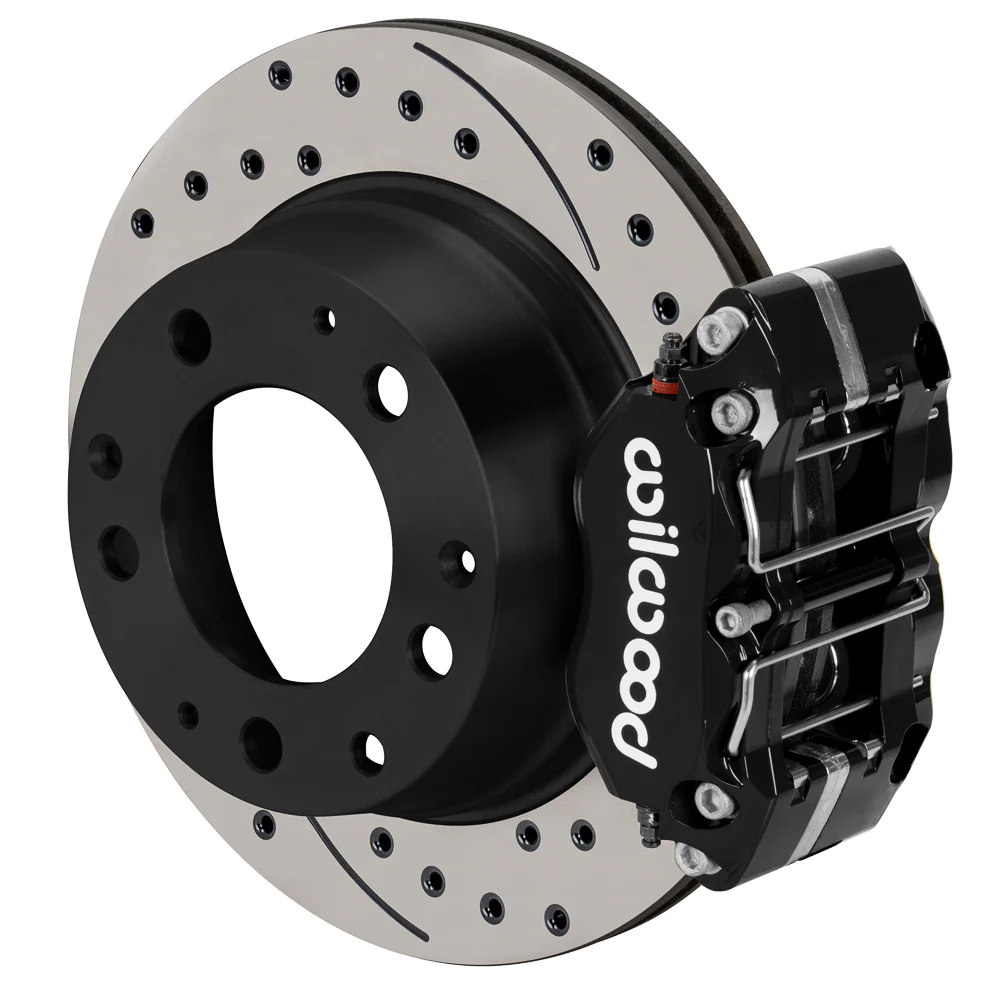

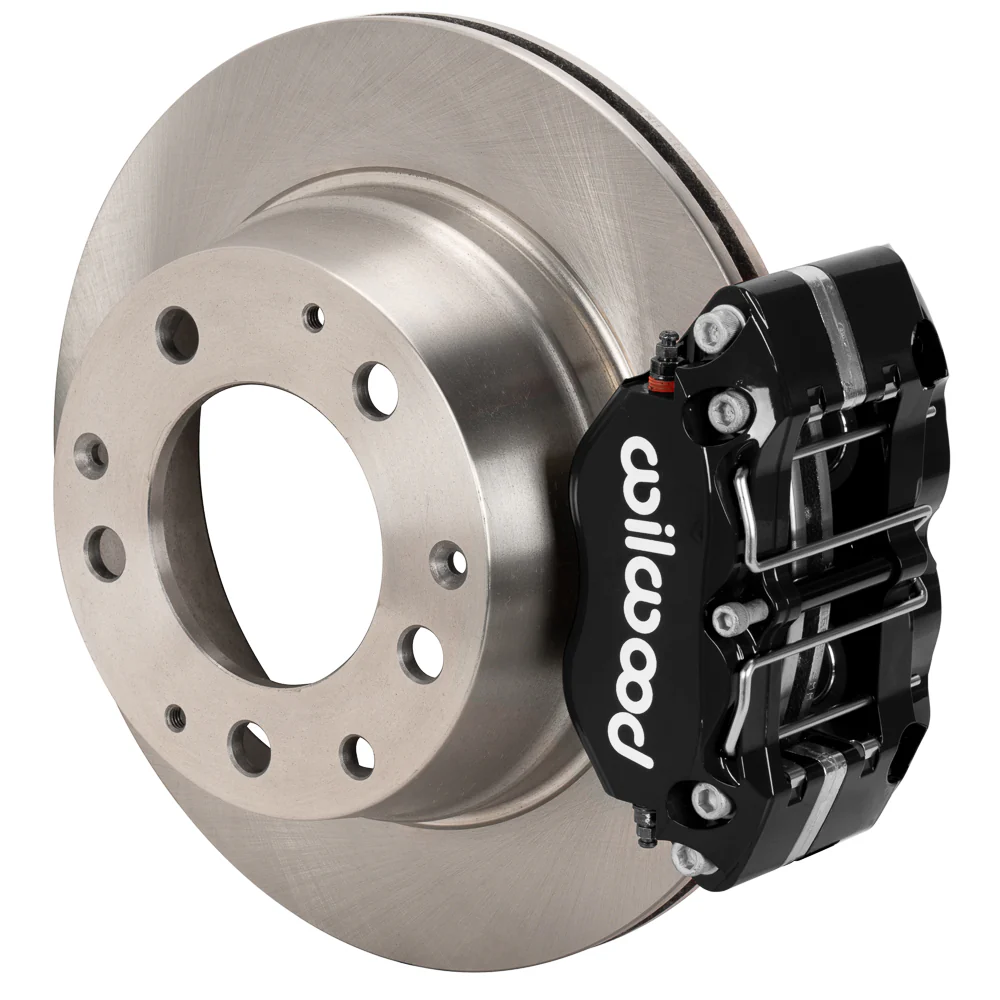

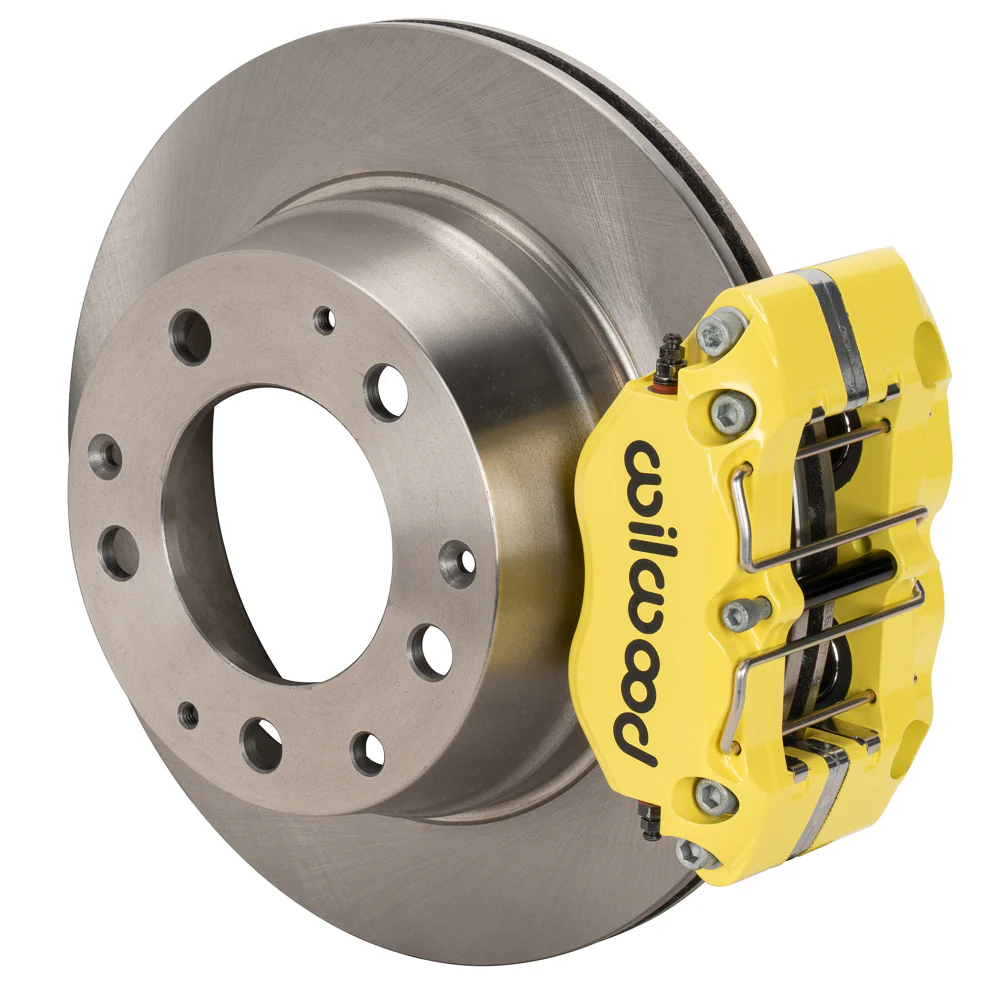

Looking for a rear brake solution for your 911 or 912? Look no further! Wilwood's Narrow Dynapro-P Radial Rear Brake Kit has everything you need to upgrade your 911 or 912 to 4 piston calipers. This kit includes a 20mm rotor in either the HP Vented or the SRP drilled one piece rotors made from Wilwood's proprietary alloys. Their BP-10 performance pads top off this kit. Everything else simply bolts on using the stock rotor and mounting locations.

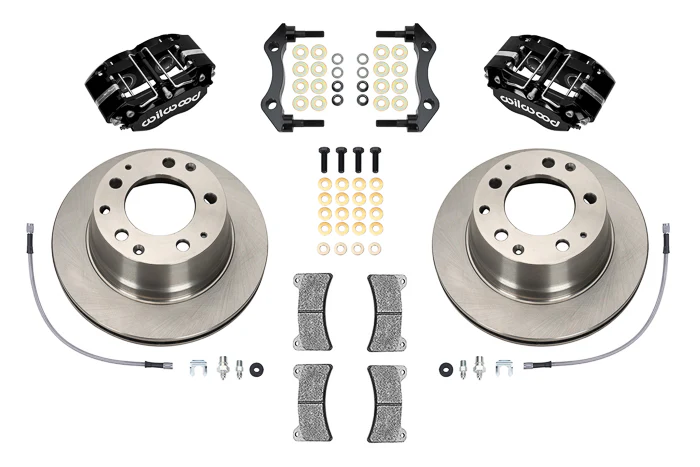

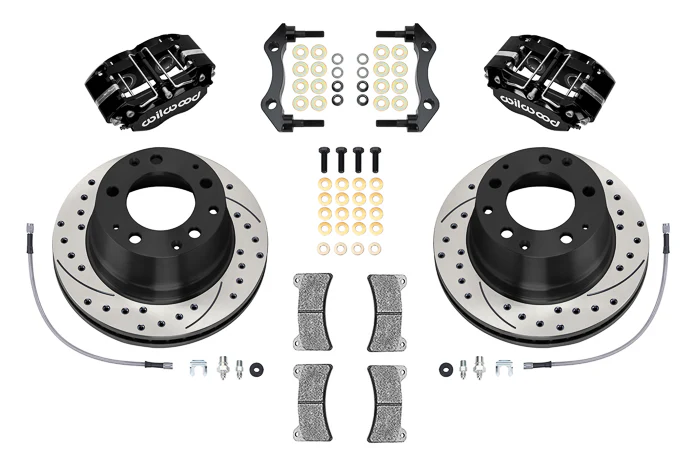

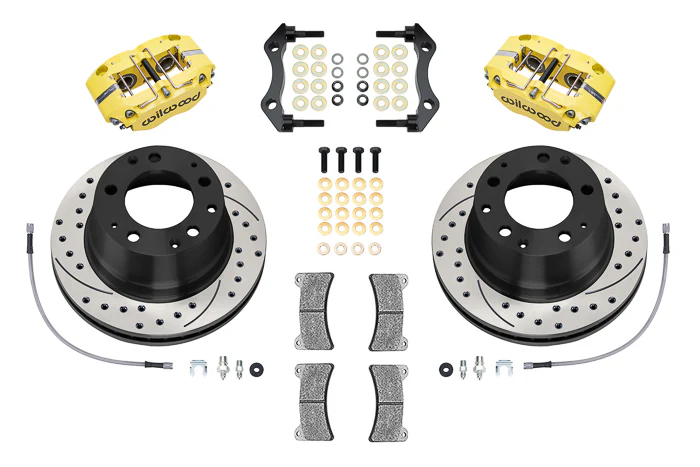

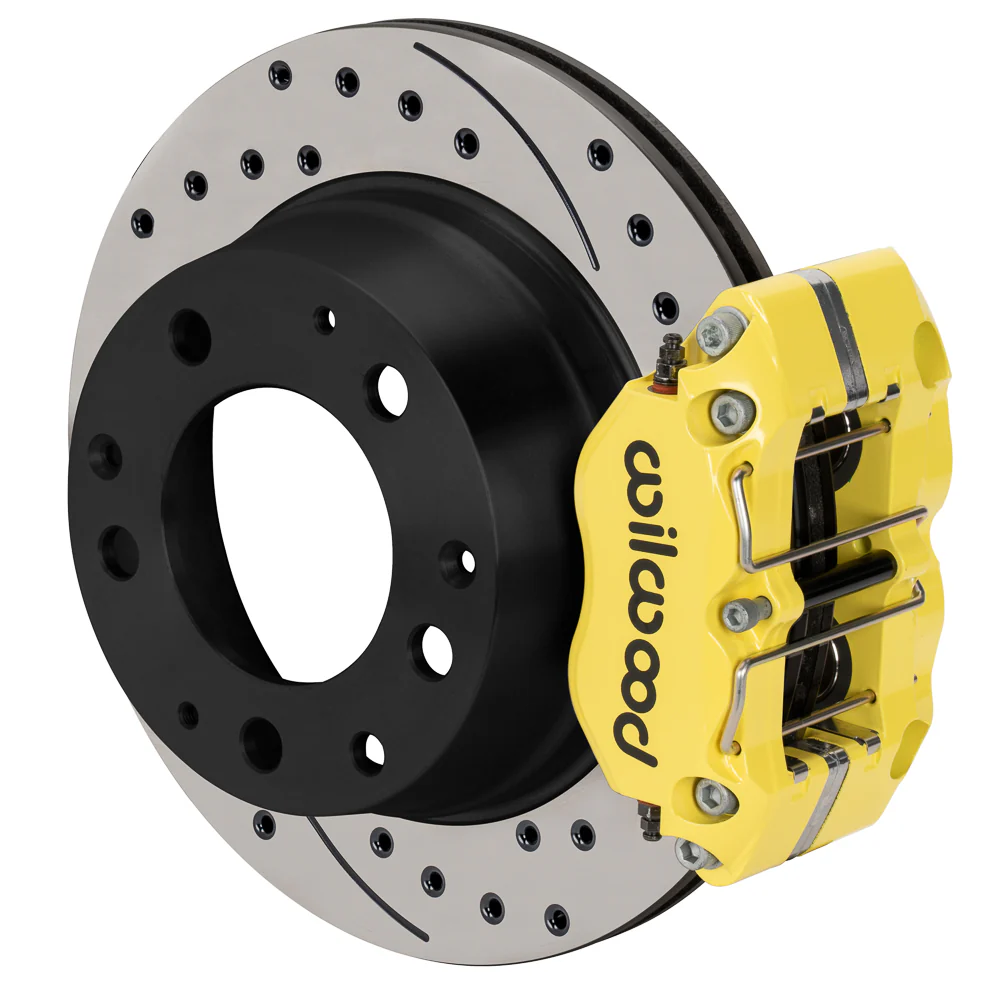

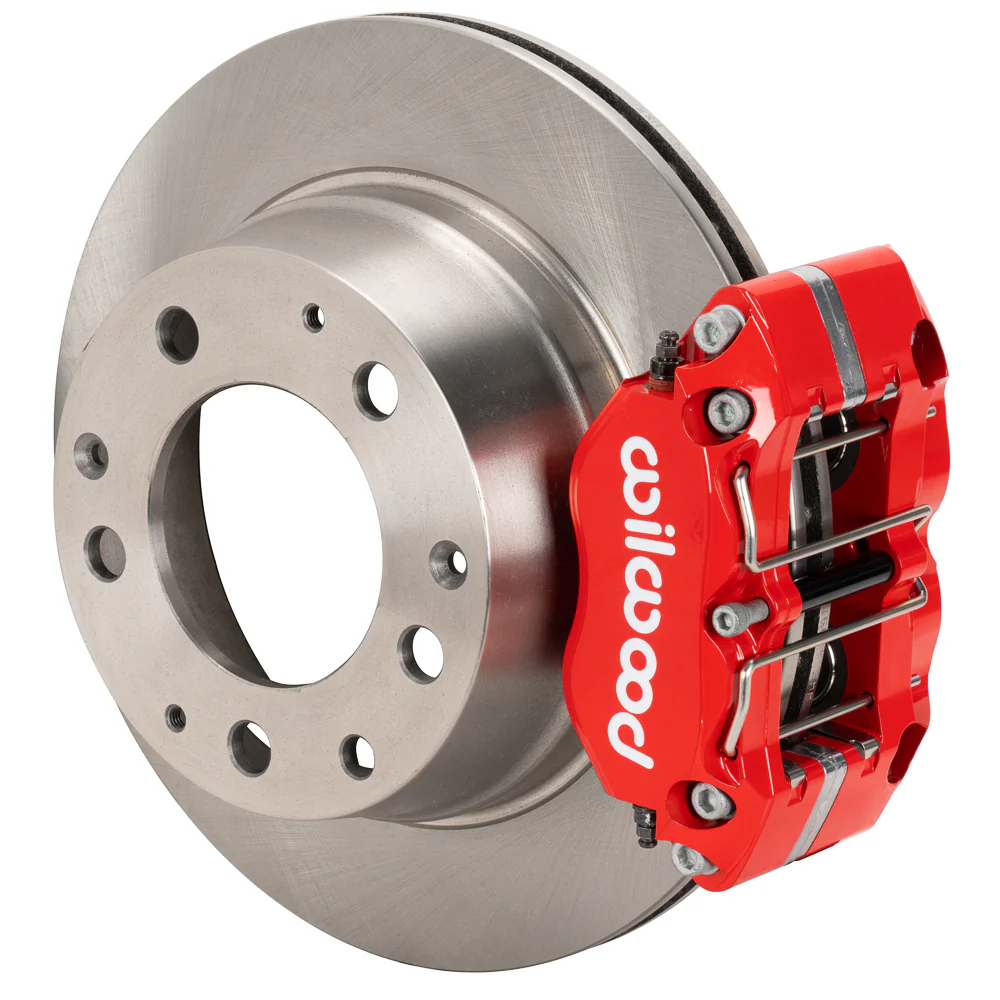

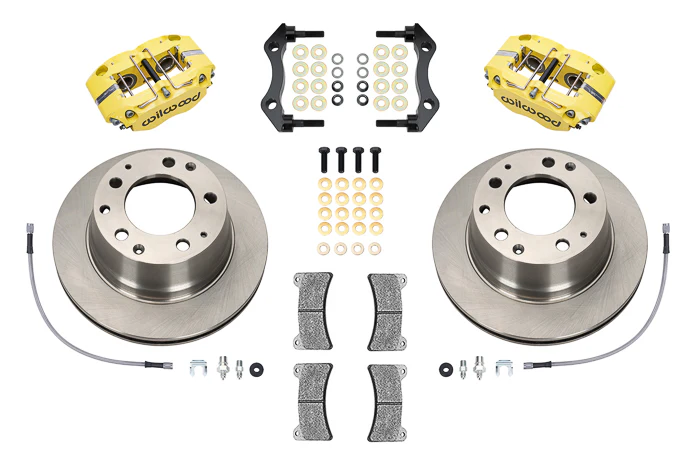

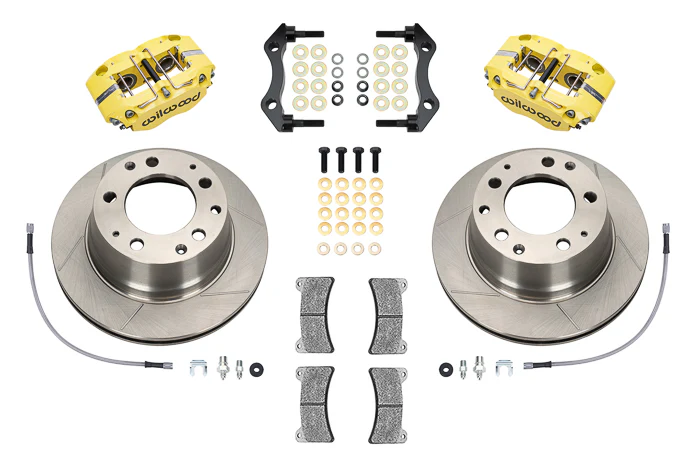

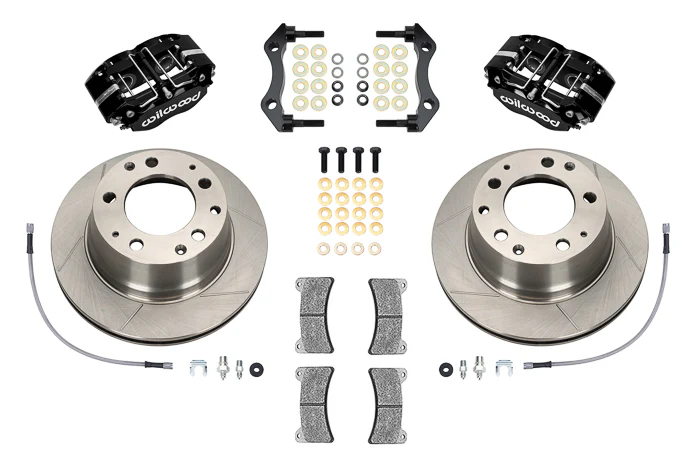

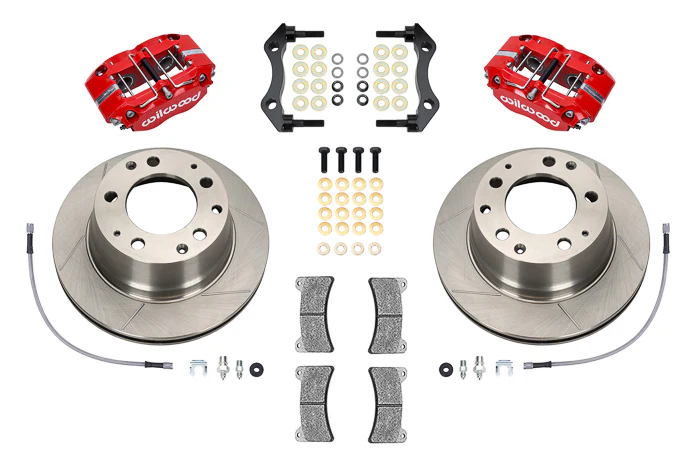

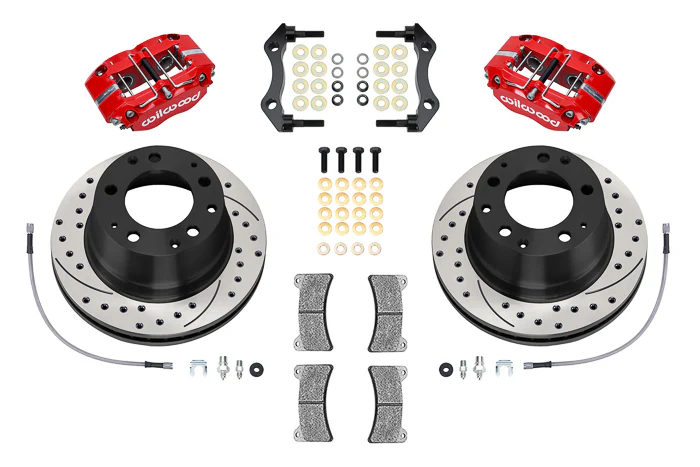

You'll get new Forged Narrow Dynapro Radial calipers, pads, rotors and brackets that are all engineered as high performance street and race applications. These kits combine the high-tech styling and superior performance of the NDPR-P calipers and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Kits include The HP Vented or SRP drilled one piece rotors.

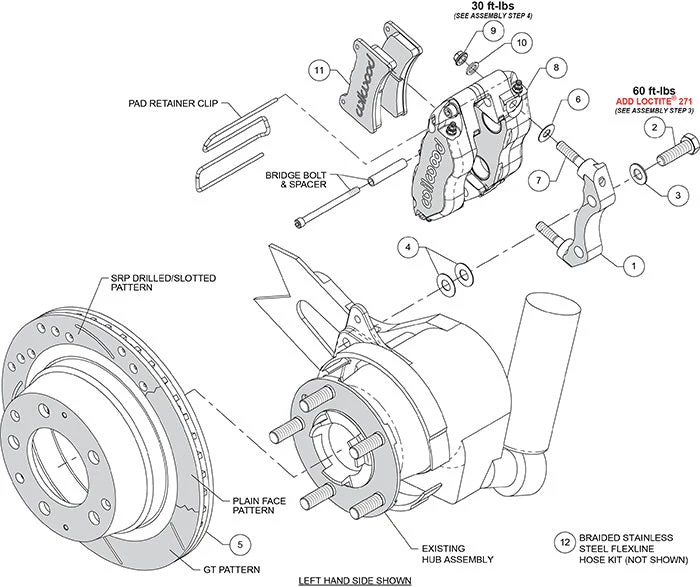

These kits are a simple bolt-on fit to your rear control arms. Even new Braided stainless flexlines are included.

Kit Summary
Rear End Axle:	OEM
Axle Offset:	0.00
Mount Type:	Radial
Caliper Type:	4 - Piston
Rotor Diameter:	Stock

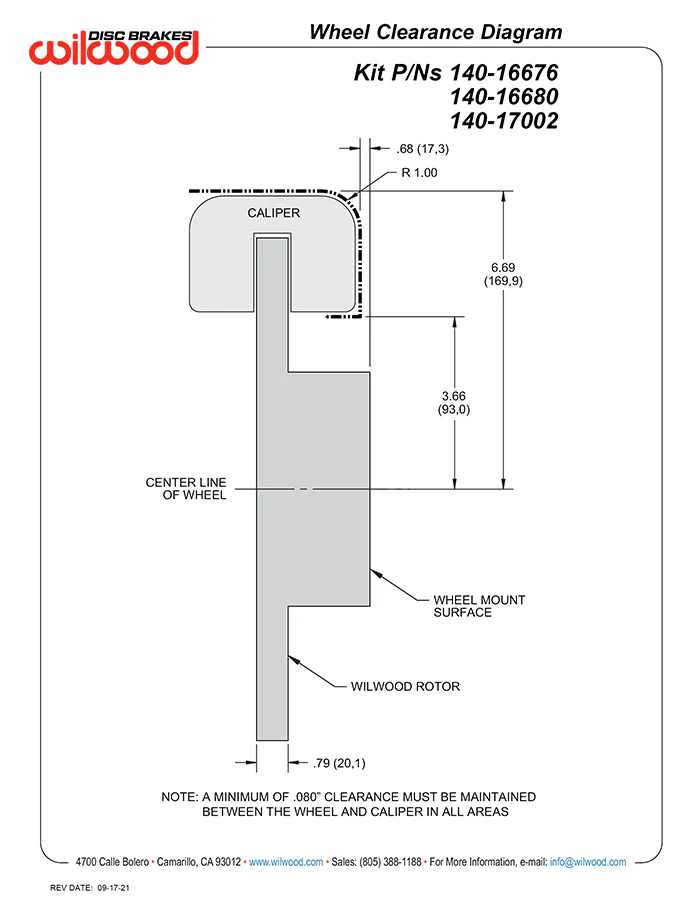

Min Wheel Diameter Req'd*:	15



Calipers
Left Hand - Part No:	120-16686
Right Hand - Part No:	120-16686
Type:	Narrow Dynapro-P Radial Mount
Finish Color:	Red/Yellow/Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.12
Piston 2 Bore (in):	1.12
Piston Area (In²):	1.98
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	4812
Brake Pad Area (In²):	5.1
Brake Pad Volume (In³):	1.71
Pad Compound:	BP-10



Rotors
Left Hand - Part No:	160-16696
Right Hand - Part No:	160-16695
Type:	HP Vented or SRP Drilled Rotor & Hat
Style:	HP Vented or SRP Drilled & Slotted
Surface Finish:	Electro Coat
Material:	Iron
Outside Diameter (in):	11.42
Width (in):	0.80
Vane Count:	Vented
Design Type:	HPV or SRP-BLK
Bedded:	No
Dynamically Balanced:	No
