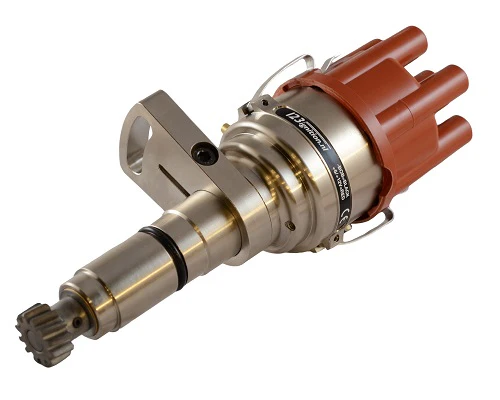

The wireless programmable 123\TUNE+-6-R-V-POR911-BIG is designed for Porsche 911 2,4L – 2,7L and 3,3L 6 cylinder engines.
INSTALLATION MANUAL
Suitable for engines without HKZ (CDI) unit or first generation HKZ unit ( 3 wires ).
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.

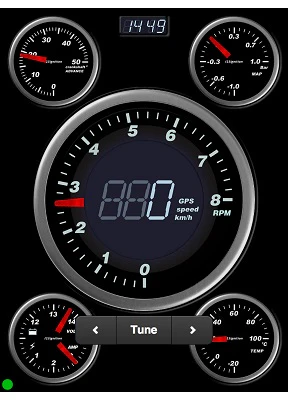

123ignition is proud to announce the first fully programmable wireless ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Specifications:
- Cylinders: 6
- Directions: CW/CCW
- Voltage: 4,0 - 15,0 volt
- Range: 500 - 8000 rpm
- Temperature: -30 to 100 Celsius
- Coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
- Dwell: constant current, fully autom.
- Time-out: after 1 second current is switched off
- Spark-bal: <0,5 degr. crankshaft
- Vacuum: Programmable: -20 / +20 degrees.

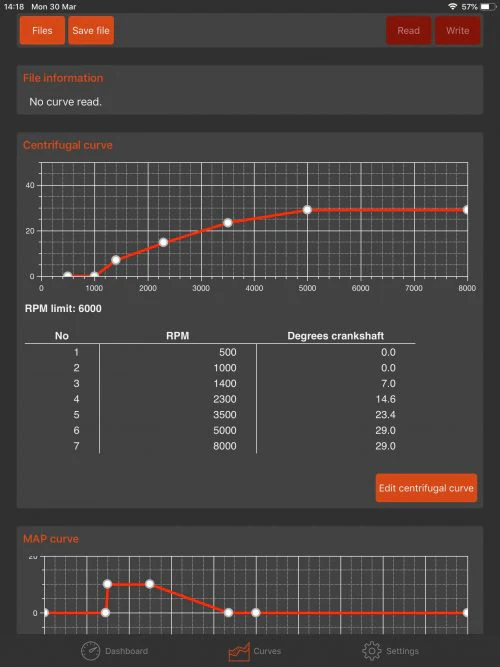

- Curve: Wireless programmable with Android or iOS app
- Max. Advance: 45 degr. crankshaft

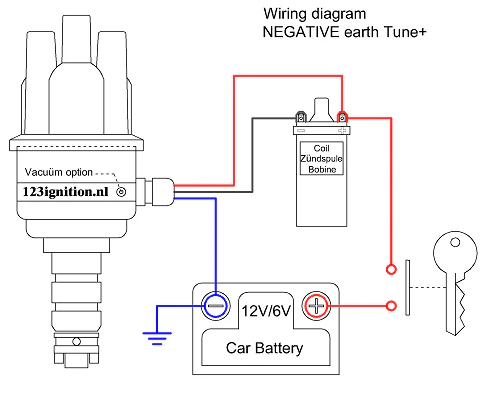

- Wiring: red = +6V or +12V, black = '-' coil, blue = chassis ground
- Earth type: Suitable for negative and positive earth systems

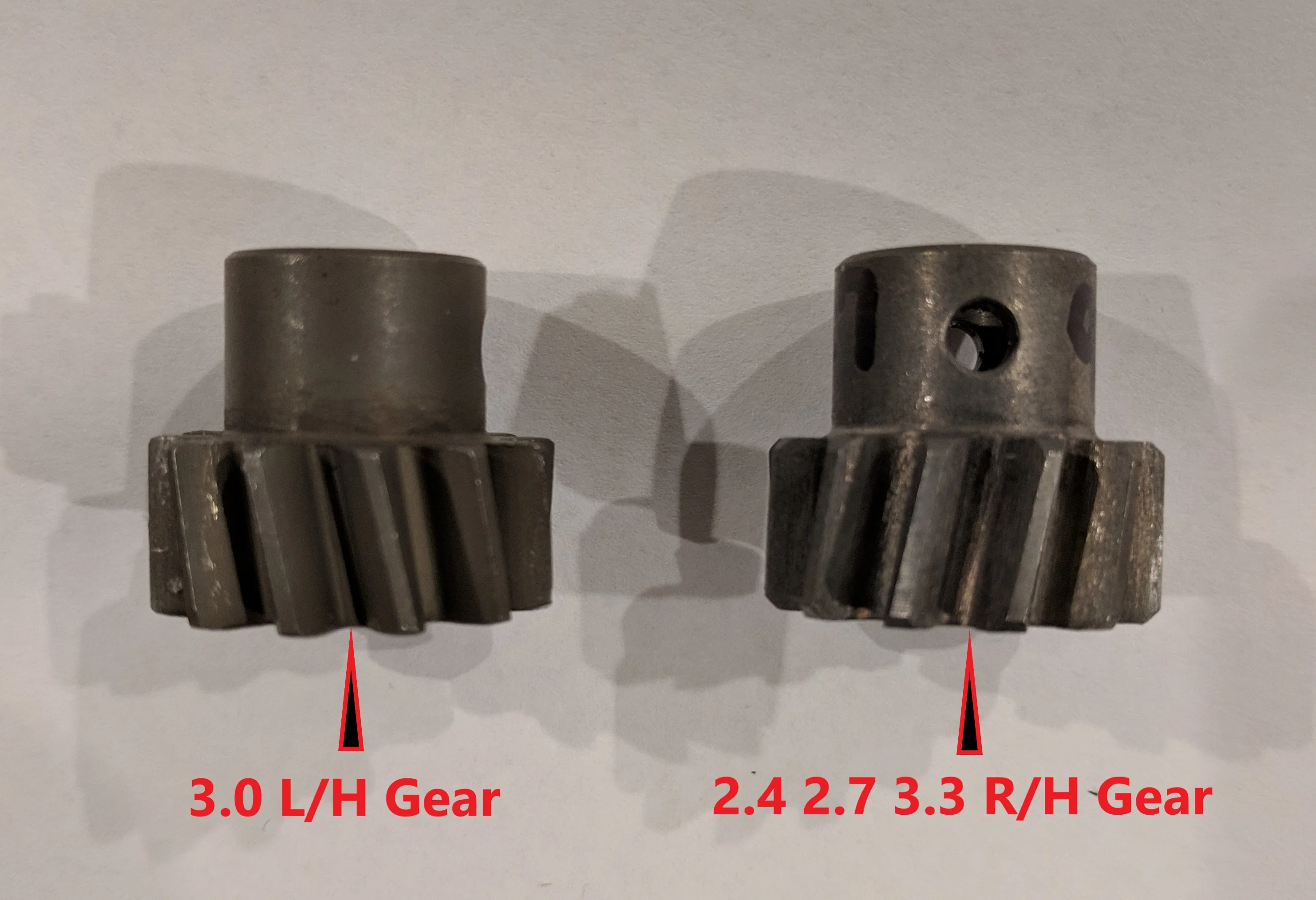

- If you have the gear pictured on the left and you are not using the 6pin Hkz then you need to select the L/H gear option.
- There is dedicated 3.0L 911Big using the 6 pin Hkz box.
